Eight-Camera Screw and Nut Inspection

Name: Eight-Camera Screw and Nut Inspection
Brand: LINEVO

Eight 5-megapixel cameras check screws and nuts for thread, slot and size. Recorded speeds depend on an undefined small and large split.

Send your fasteners and pack samples to confirm the configuration, output and quotation.

Get a configuration & quote Request an email quote Compare the machine range

Updated October 23, 2026

Open equipment layout for the eight-camera screw and nut inspection arrangement. Overall dimensions are not stated.

Open the main image to see it at full size.

Cameras

8 cameras, 5 megapixels eachOne angled top view, one top view, one side view, four around the part, and one bottom view.

Screw rate

500–600 pcs/minThe sheet does not define how this band differs from the small-screw and large-screw bands.

Small-screw rate

200–400 pcs/minSmall is not given as a diameter or length.

Large-screw rate

100 pcs/minLarge is not given as a diameter or length.

Machine configuration

Technical specifications

Check your pack against this configuration

Item	Specification	Application and conditions
Cameras	8 cameras, 5 megapixels each	One angled top view, one top view, one side view, four around the part, and one bottom view.
Screw rate	500–600 pcs/min	The sheet does not define how this band differs from the small-screw and large-screw bands.
Small-screw rate	200–400 pcs/min	Small is not given as a diameter or length.
Large-screw rate	100 pcs/min	Large is not given as a diameter or length.
Misjudgment	3%–10%	The sheet does not define the denominator or whether this is false rejects, misses, or both.
Outlets	NG, OK, and UN	One layout labels the third outlet UG. The sheet does not define that outlet.
Control	FPGA logic, i7 industrial PC	The CPU model is not stated. One page says a 21 inch DELL display and another says a touchscreen.
Utilities and size	Not stated	Voltage, power, air, machine size and weight are not on the sheet.

This arrangement inspects screws and nuts with eight cameras of 5 megapixels each. Parts leave a bowl feeder, move on a glass dial, and pass the eight stations. The recorded camera model is MV-CH120. A fiber sensor is listed as Keyence FS-N18N with amplifier FU-7F. The relay and contactor are listed as Schneider RXM2AB1BD and LC1N0910M5N.

The station table assigns the side measurements to the third camera. One drawing caption on the source sheet calls that same view the first camera. This page follows the station table.

Recorded speeds are 500–600 pieces per minute for screws, 200–400 for small screws, and 100 for large screws. The sheet never defines the size split. Misjudgment is written as 3%–10% without a definition. Measurement accuracy is not stated, and it is not calculated from the pixel count.

Compare the LINEVO fastener packing range.

The parts list records one vibratory bowl. The project text asks for three bowls. Discharge labels are NG, OK and UN, while one layout prints UG for the third outlet. The sheet does not explain that third outlet. Voltage, air and machine size are not stated. Send the parts and the pack.

Look closer

Equipment and packaging details

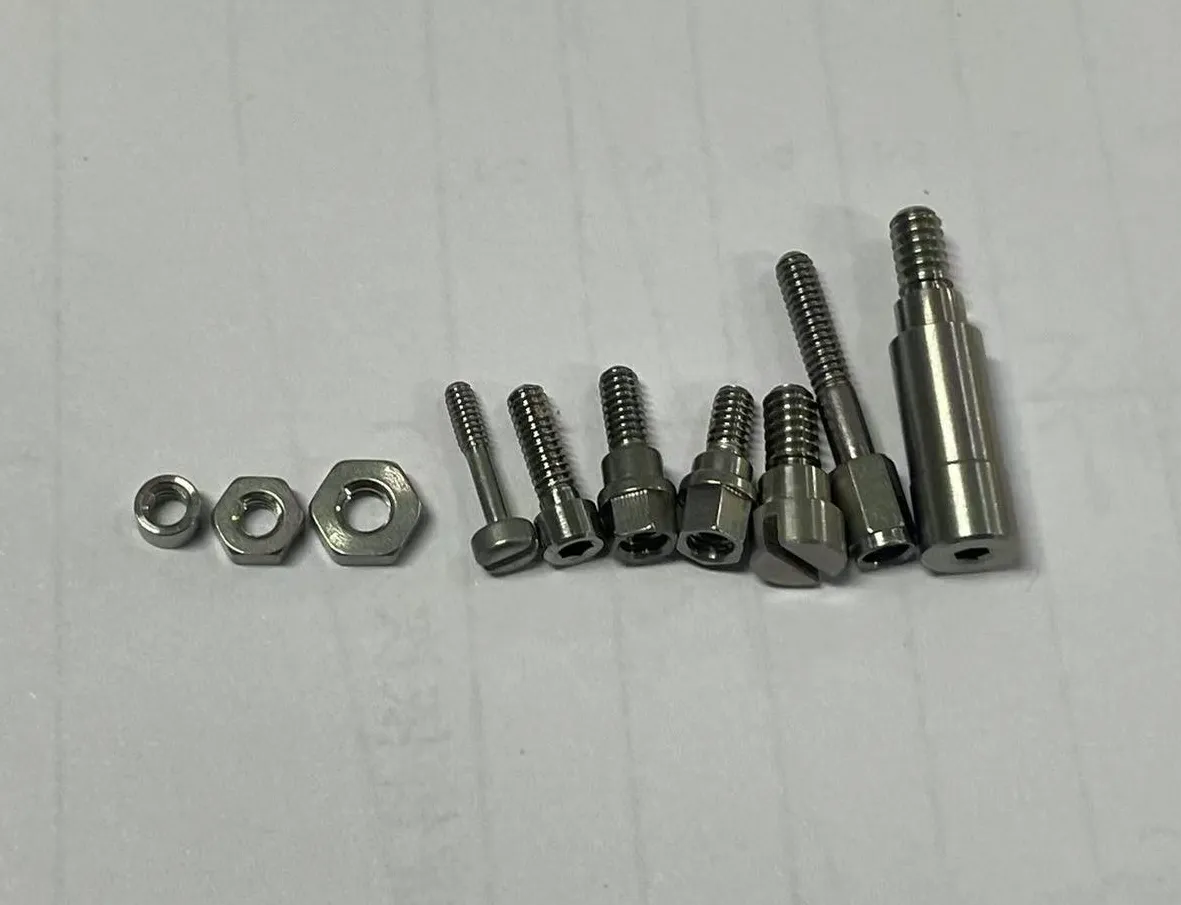

Sample screws and nuts for optical inspection — Sample screws and nuts from the inspection sheet. They do not define every fastener size the machine can run.

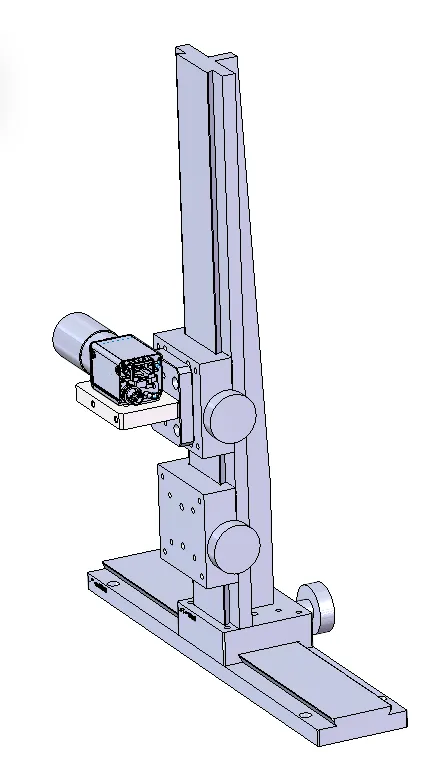

Horizontal camera module. The station table assigns this view to the side-measurement camera.
