LINEVO · LinevoPack · Fastener and hardware packing machinery

Fastener Packaging Lines

Name: Fastener Packaging Lines
Brand: LINEVO

LINEVO lines that connect counting or weighing with bagging and cartons. Piece rates from a counter are not the line's bag rate.

Send your fasteners and pack samples to confirm the configuration, output and quotation.

Get a configuration & quote Request an email quote Compare the machine range

Updated October 23, 2026

Equipment photograph supplied for this configuration. Fit, inclusion and output are confirmed on your parts.

Open the main image to see it at full size.

Line rate

Not the counter's piece rateAn 8,000–10,000 pcs/min counter still has to fill, seal and discharge a bag.

Custom lines

Scope drawing, no recorded capacityThe weighing-and-boxing line and the bag-and-carton line leave speed, carton size and power blank.

Low-drop line

About 2–3 bags/min on one pageAnother page says about 3 bags/min. Both stay, and the sheet says the line is a preliminary reference.

Quotation

Each machine marked included or notA feeder, printer and cartoner in a drawing are included only when the offer says so.

Machine configuration

Technical specifications

Check your pack against this configuration

Item	Specification	Application and conditions
Line rate	Not the counter's piece rate	An 8,000–10,000 pcs/min counter still has to fill, seal and discharge a bag.
Custom lines	Scope drawing, no recorded capacity	The weighing-and-boxing line and the bag-and-carton line leave speed, carton size and power blank.
Low-drop line	About 2–3 bags/min on one page	Another page says about 3 bags/min. Both stay, and the sheet says the line is a preliminary reference.
Quotation	Each machine marked included or not	A feeder, printer and cartoner in a drawing are included only when the offer says so.

A fastener line is the handoff from parts to a finished pack. LINEVO treats a counter, a bagger and a cartoner as separate scope items. The piece rate on a counting page is not the number of cartons the line will close.

Compare the LINEVO fastener packing range.

Three recorded arrangements

The low-drop counting and packaging line is the only one of the three with bag-per-minute figures. It places one feeder, one low-drop counter, one tube-film packer and one outfeed conveyor together, with a printer as optional. The source sheet says the layout is a preliminary reference and is not an acceptance basis.

The counting, bagging and carton line and the weighing, counting and boxing line are custom layouts. Their sheets show the arrangement and leave capacity, bag size, carton size and power blank.

Choose the counter or weigher on its own page, then ask for the downstream machines to be listed. Send the parts and the pack.

Look closer

Equipment and packaging details

Weighing, counting and boxing line layout — Custom weighing, counting and boxing layout. Capacity and carton size are not on that sheet.

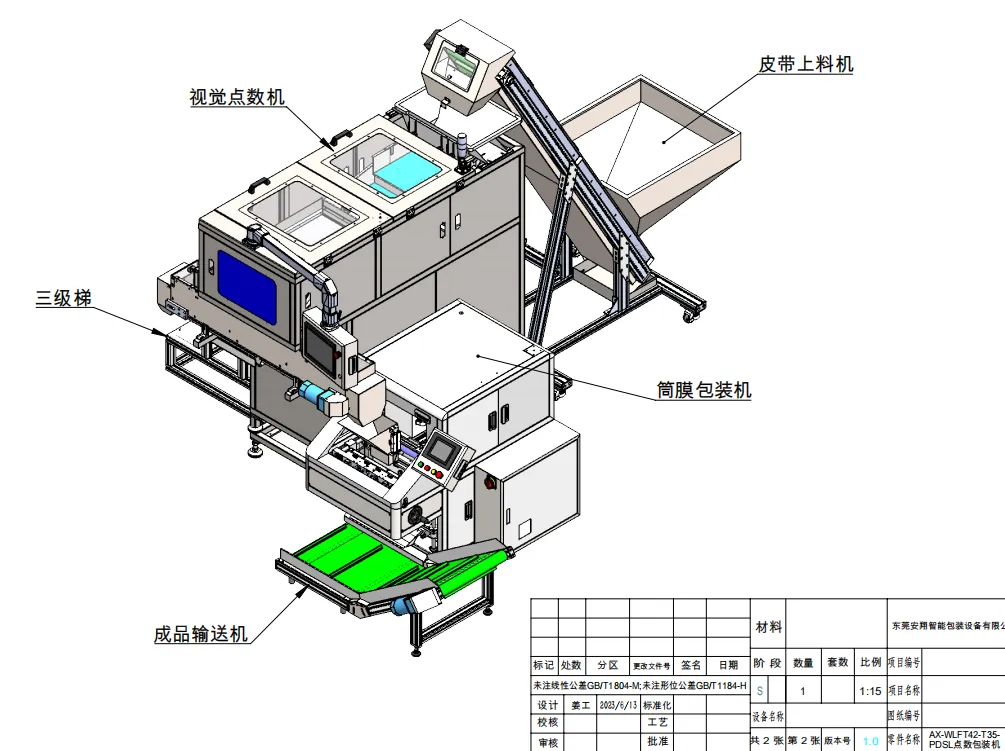

Low-drop counting line with a feeder and tube-film packer — Low-drop line layout. That sheet does record approximate bag rates and says it is not an acceptance basis.

Frequently Asked Questions

Where do these figures come from?

Each figure is copied from the equipment sheet for this configuration. A blank cell stays blank, and a piece rate is not rewritten as bags per minute.

What should I send for a quotation?

Send the parts, the target count or weight, a bag or carton sample, and the delivery country and city. LINEVO confirms fit and output on those samples.

LINEVO ENGINEERING & SAMPLE TESTING

Check the fastener, the pack and the finished result.

LINEVO can arrange project sample tests and video demonstrations with representative parts and packaging material. Agree the configuration, measurements and test record before sending samples.

Prepare production samples

Use fasteners from a normal production batch and the bag, pouch or carton you intend to ship. Include the count or weight, the pack drawing, the target output and any sizes that tangle or jam. Confirm quantities and shipping instructions with our team first.

Define measurable checks

Agree the count or net-weight target, how many packs to check, the seal checks and the timed count of acceptable packs. Include feeder jams, pouch opening and carton counts where they affect the selected machine.

Carry the criteria into acceptance

Define the factory acceptance test (FAT) scope in the order: configuration, materials, run conditions, pass criteria and records to deliver. Agree whether you need a written record, run video or returned packs for your quality team.

Seal quality: agree the evaluation method with your packaging team. ASTM F88/F88M covers seal separation force and failure mode for flexible barrier materials. Set pack-specific limits separately from a visual check for parts trapped in the seal.

Count and weight: recount or reweigh finished packs at the agreed discharge. A counter pulse or a scale setpoint is not the same record as a saleable bag. For retail packs, NIST Handbook 133 is a reference for checking the net contents of packaged goods.

Discuss your fastener samples and acceptance requirements with LINEVO

Standards & engineering documentation

Technical standards & reference documentation

LINEVO packaging machinery — LINEVO
NIST Handbook 133, Checking the Net Contents of Packaged Goods — NIST

Configuration & quotation

Tell us what you need to pack.

Use the same production brief to compare equipment and quotations. Start with these details, then send your requirements through our homepage.

Request your fastener packing quote Email your RFQ

Fasteners & quantityPart sample, target count or net weight, and each size you need to run.
Finished packBag, pouch, header bag or carton sample, with dimensions and closure.
Required outputAccepted packs per minute, operating hours and planned changeovers.
Site & supply scopePower, compressed air, room drawing, downstream equipment and delivery location.
