Weighing and Packaging Machine

Name: Weighing and Packaging Machine
Brand: LINEVO

Weighing packer for a single weigh of 200 g–5 kg. Accuracy is recorded as a 0.5–10 g range, and the top speed has no time unit.

Send your fasteners and pack samples to confirm the configuration, output and quotation.

Get a configuration & quote Request an email quote Compare the machine range

Updated October 23, 2026

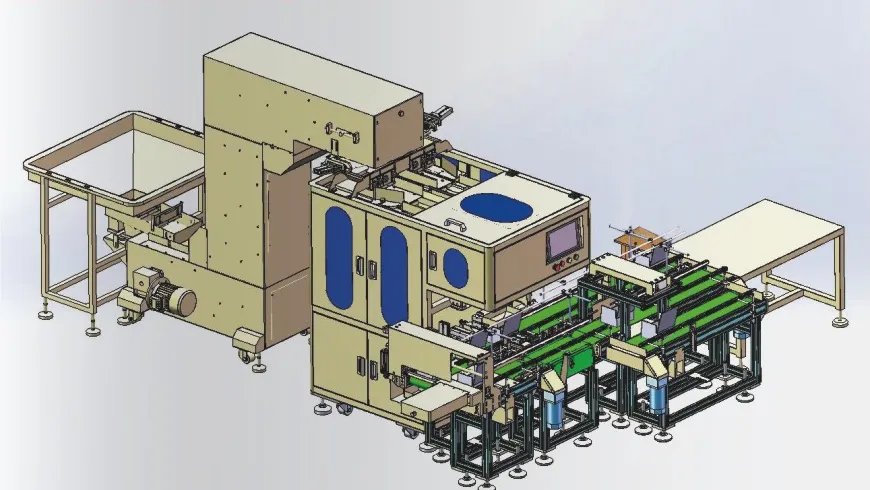

Equipment photograph supplied for this configuration. Fit, inclusion and output are confirmed on your parts.

Open the main image to see it at full size.

Single weigh

200 g–5 kgRecorded weigh range. Part type is not named on this sheet.

Accuracy range

0.5–10 gThe sheet gives a range, not ±0.5 g at every weight. Test conditions are not stated.

Top speed

4–6 bagsThe sheet gives no time unit. Do not read this as bags per minute.

Hopper

5 LRecorded hopper volume.

Machine configuration

Technical specifications

Check your pack against this configuration

Item	Specification	Application and conditions
Single weigh	200 g–5 kg	Recorded weigh range. Part type is not named on this sheet.
Accuracy range	0.5–10 g	The sheet gives a range, not ±0.5 g at every weight. Test conditions are not stated.
Top speed	4–6 bags	The sheet gives no time unit. Do not read this as bags per minute.
Hopper	5 L	Recorded hopper volume.
Control	PLC, 500 presets	500 stored settings are recorded. The sheet does not define what one preset contains.
Operator screen	10 inch color touchscreen	This sheet records 10 inches, not the 10.4 inch screen on the tube-film row.
Power supply	220V*10% 50HZ/60HZ	Copied with the asterisk printed on the sheet. It is not rewritten as plus or minus 10 percent.

This machine weighs and packs. One weigh is recorded as 200 g–5 kg. The accuracy cell is a range, 0.5–10 g, without the product or the test method. It is not a claim that every weigh in that span holds ±0.5 g.

The fastest speed is written as 4–6 bags and has no time unit. The hopper is 5 L. Control is a PLC with 500 presets and a 10 inch color touchscreen.

The power line is printed as 220V*10% 50HZ/60HZ. The asterisk is kept as printed. Compare the LINEVO fastener packing range.

A count of pieces is a different machine. Use a vision counter when the pack states a number of pieces. NIST Handbook 133 is a reference for checking the net contents of a finished pack. It is not the source of this machine’s accuracy cell. Send the parts and the pack.

Look closer

Equipment and packaging details

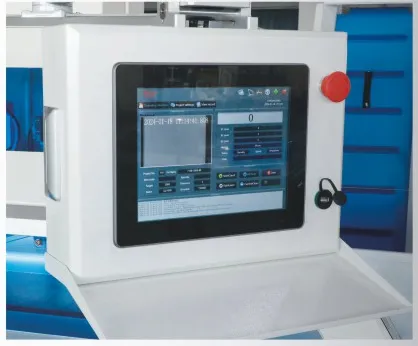

Touchscreen and control cabinet on counting equipment — Control view from the counting equipment set. Screen size on a specific machine is listed only when that sheet states it.

Feeding section of a vision counting machine — Feeding section shown with the counting equipment. Confirm which parts are included before you order.

Frequently Asked Questions

Where do these figures come from?

Each figure is copied from the equipment sheet for this configuration. A blank cell stays blank, and a piece rate is not rewritten as bags per minute.

What should I send for a quotation?

Send the parts, the target count or weight, a bag or carton sample, and the delivery country and city. LINEVO confirms fit and output on those samples.

Is 0.5 g the accuracy at 5 kg?

The sheet records an accuracy range of 0.5–10 g and does not map each figure to a weight, a product or a test. Confirm the accepted tolerance on your parts.

LINEVO ENGINEERING & SAMPLE TESTING

Check the fastener, the pack and the finished result.

LINEVO can arrange project sample tests and video demonstrations with representative parts and packaging material. Agree the configuration, measurements and test record before sending samples.

Prepare production samples

Use fasteners from a normal production batch and the bag, pouch or carton you intend to ship. Include the count or weight, the pack drawing, the target output and any sizes that tangle or jam. Confirm quantities and shipping instructions with our team first.

Define measurable checks

Agree the count or net-weight target, how many packs to check, the seal checks and the timed count of acceptable packs. Include feeder jams, pouch opening and carton counts where they affect the selected machine.

Carry the criteria into acceptance

Define the factory acceptance test (FAT) scope in the order: configuration, materials, run conditions, pass criteria and records to deliver. Agree whether you need a written record, run video or returned packs for your quality team.

Seal quality: agree the evaluation method with your packaging team. ASTM F88/F88M covers seal separation force and failure mode for flexible barrier materials. Set pack-specific limits separately from a visual check for parts trapped in the seal.

Count and weight: recount or reweigh finished packs at the agreed discharge. A counter pulse or a scale setpoint is not the same record as a saleable bag. For retail packs, NIST Handbook 133 is a reference for checking the net contents of packaged goods.

Discuss your fastener samples and acceptance requirements with LINEVO

Standards & engineering documentation

Technical standards & reference documentation

LINEVO packaging machinery — LINEVO
NIST Handbook 133, Checking the Net Contents of Packaged Goods — NIST

Configuration & quotation

Tell us what you need to pack.

Use the same production brief to compare equipment and quotations. Start with these details, then send your requirements through our homepage.

Request your fastener packing quote Email your RFQ

Fasteners & quantityPart sample, target count or net weight, and each size you need to run.
Finished packBag, pouch, header bag or carton sample, with dimensions and closure.
Required outputAccepted packs per minute, operating hours and planned changeovers.
Site & supply scopePower, compressed air, room drawing, downstream equipment and delivery location.
