Tube-Film Packaging Machine

Name: Tube-Film Packaging Machine
Brand: LINEVO

PE tube-film packer with a 150–250 mm bag size, 0.05–0.1 mm film and a recorded speed of 3–5 bags. No time unit is stated.

Send your fasteners and pack samples to confirm the configuration, output and quotation.

Get a configuration & quote Request an email quote Compare the machine range

Updated October 23, 2026

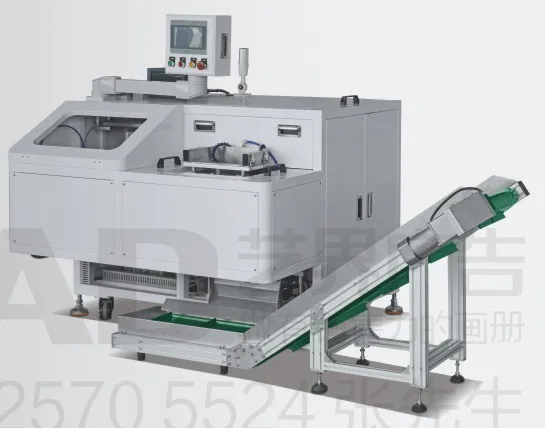

Equipment photograph supplied for this configuration. Fit, inclusion and output are confirmed on your parts.

Open the main image to see it at full size.

Bag size

150–250 mmThe sheet does not say whether this is width, length or film width.

Machine body

1,230 (L) × 903 (W) × 932 (H) mmCopied from this sheet. Confirm it against the drawing for the machine you buy.

Film

PE film, 0.05–0.1 mmRecorded material and thickness for this row.

Pack weight

10 g–10 kgRecorded pack range. It is not a scale accuracy.

Machine configuration

Technical specifications

Check your pack against this configuration

Item	Specification	Application and conditions
Bag size	150–250 mm	The sheet does not say whether this is width, length or film width.
Machine body	1,230 (L) × 903 (W) × 932 (H) mm	Copied from this sheet. Confirm it against the drawing for the machine you buy.
Film	PE film, 0.05–0.1 mm	Recorded material and thickness for this row.
Pack weight	10 g–10 kg	Recorded pack range. It is not a scale accuracy.
Packing speed	3–5 bags	The sheet gives no time unit. Do not read this as bags per minute.
Operator screen	10.4 inch color touchscreen	Recorded on this sheet.
Power supply	AC 220 V, 50/60 Hz	This row does not print a ±10% tolerance. One is not borrowed from another machine.

This packer forms bags from PE tube film. The sheet records a bag size of 150–250 mm without a direction, film thickness of 0.05–0.1 mm, a pack range of 10 g–10 kg, and a speed written as 3–5 bags. There is no per-minute unit on that speed.

The voltage line is AC 220 V, 50/60 Hz, without the tolerance printed on some counting rows. Compare the LINEVO fastener packing range.

The high-speed tube-film machine is a different row, and its speed cell is blank. A counted discharge into this style of bagger is described on the low-drop counting and packaging line, which does record an approximate bags-per-minute figure. Send the parts and the pack.

Look closer

Equipment and packaging details

Tube-film packer structure with screen, film and seal jaws — Structure drawing of a tube-film packer used with the low-drop line. Confirm which of these parts are in the supply.

Touchscreen and control cabinet on counting equipment — Control view from the counting equipment set. Screen size on a specific machine is listed only when that sheet states it.

Frequently Asked Questions

Where do these figures come from?

Each figure is copied from the equipment sheet for this configuration. A blank cell stays blank, and a piece rate is not rewritten as bags per minute.

What should I send for a quotation?

Send the parts, the target count or weight, a bag or carton sample, and the delivery country and city. LINEVO confirms fit and output on those samples.

LINEVO ENGINEERING & SAMPLE TESTING

Check the fastener, the pack and the finished result.

LINEVO can arrange project sample tests and video demonstrations with representative parts and packaging material. Agree the configuration, measurements and test record before sending samples.

Prepare production samples

Use fasteners from a normal production batch and the bag, pouch or carton you intend to ship. Include the count or weight, the pack drawing, the target output and any sizes that tangle or jam. Confirm quantities and shipping instructions with our team first.

Define measurable checks

Agree the count or net-weight target, how many packs to check, the seal checks and the timed count of acceptable packs. Include feeder jams, pouch opening and carton counts where they affect the selected machine.

Carry the criteria into acceptance

Define the factory acceptance test (FAT) scope in the order: configuration, materials, run conditions, pass criteria and records to deliver. Agree whether you need a written record, run video or returned packs for your quality team.

Seal quality: agree the evaluation method with your packaging team. ASTM F88/F88M covers seal separation force and failure mode for flexible barrier materials. Set pack-specific limits separately from a visual check for parts trapped in the seal.

Count and weight: recount or reweigh finished packs at the agreed discharge. A counter pulse or a scale setpoint is not the same record as a saleable bag. For retail packs, NIST Handbook 133 is a reference for checking the net contents of packaged goods.

Discuss your fastener samples and acceptance requirements with LINEVO

Standards & engineering documentation

Technical standards & reference documentation

LINEVO packaging machinery — LINEVO
NIST Handbook 133, Checking the Net Contents of Packaged Goods — NIST

Configuration & quotation

Tell us what you need to pack.

Use the same production brief to compare equipment and quotations. Start with these details, then send your requirements through our homepage.

Request your fastener packing quote Email your RFQ

Fasteners & quantityPart sample, target count or net weight, and each size you need to run.
Finished packBag, pouch, header bag or carton sample, with dimensions and closure.
Required outputAccepted packs per minute, operating hours and planned changeovers.
Site & supply scopePower, compressed air, room drawing, downstream equipment and delivery location.
