Vision Inspection and Packaging Machine

Name: Vision Inspection and Packaging Machine
Brand: LINEVO

Inspection and PE-film packing in one recorded body size. Camera count and defect list are not on this sheet. Bag speed has no time unit.

Send your fasteners and pack samples to confirm the configuration, output and quotation.

Get a configuration & quote Request an email quote Compare the machine range

Updated October 23, 2026

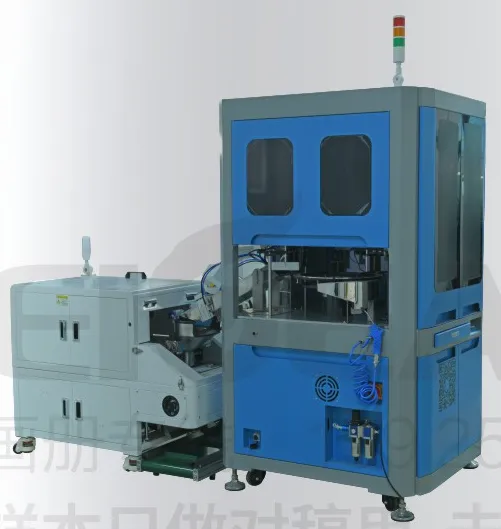

Equipment photograph supplied for this configuration. Fit, inclusion and output are confirmed on your parts.

Open the main image to see it at full size.

Bag size

Not on this sheetThe sheet does not say whether this is width, length or film width.

Machine body

1,230 (L) × 903 (W) × 932 (H) mmCopied from this sheet. The same body size also appears on other sheet rows, so confirm the drawing for this machine.

Film

PE film, 0.05–0.1 mmThickness is the recorded film range for this sheet.

Pack weight

10 g–10 kgRecorded pack range. It is not a scale accuracy.

Machine configuration

Technical specifications

Check your pack against this configuration

Item	Specification	Application and conditions
Bag size	Not on this sheet	The sheet does not say whether this is width, length or film width.
Machine body	1,230 (L) × 903 (W) × 932 (H) mm	Copied from this sheet. The same body size also appears on other sheet rows, so confirm the drawing for this machine.
Film	PE film, 0.05–0.1 mm	Thickness is the recorded film range for this sheet.
Pack weight	10 g–10 kg	Recorded pack range. It is not a scale accuracy.
Packing speed	3–5 bags	The sheet gives no time unit. Do not read this as bags per minute.
Operator screen	10.4 inch color touchscreen	Recorded screen size for this sheet.
Power supply	AC 220 V ±10%, 50/60 Hz	Do not copy a tolerance from a different machine row.
Inspection scope	Not itemized	The sheet does not list camera count, defect types or a measurement accuracy for this row.

This sheet combines vision inspection and packaging. It records the 1,230 × 903 × 932 mm body, PE film at 0.05–0.1 mm, a 10 g–10 kg pack range, a 10.4 inch color touchscreen, and a speed of 3–5 bags with no time unit.

It does not list the defects, the camera count or a measurement accuracy. Those items are not taken from the eight-camera screw and nut layout. Compare the LINEVO fastener packing range.

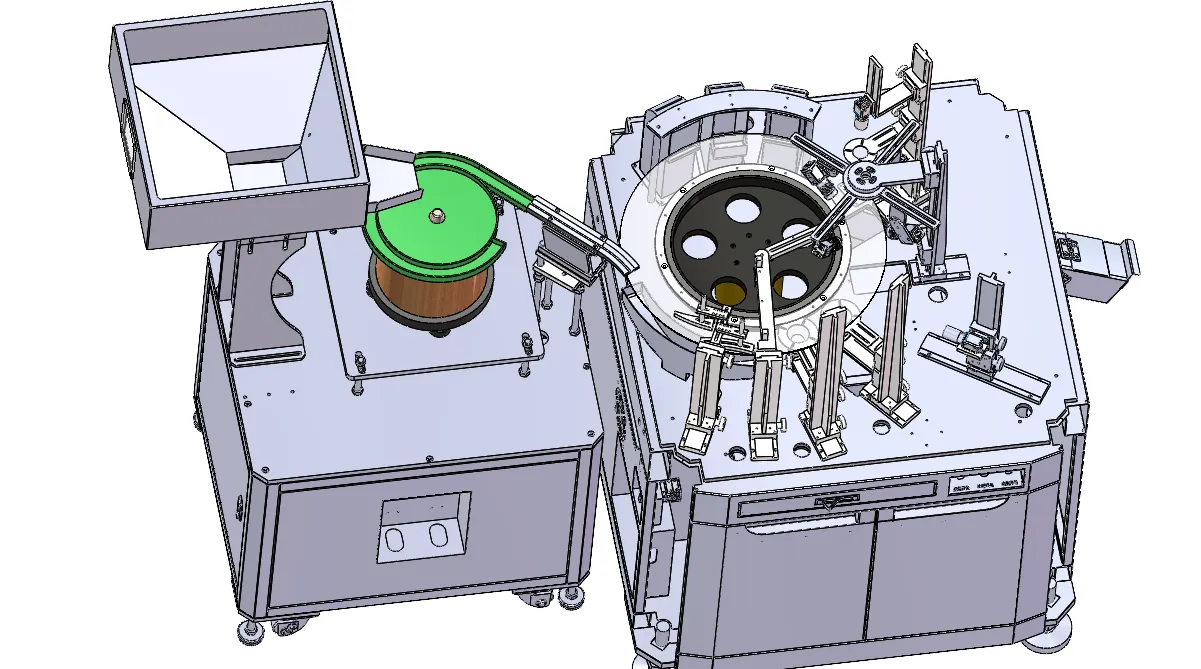

The screw and nut optical inspection machine is a separate eight-camera arrangement with its own speeds. The tube-film packer records a bag size that this row does not. Send the parts and the pack.

Look closer

Equipment and packaging details

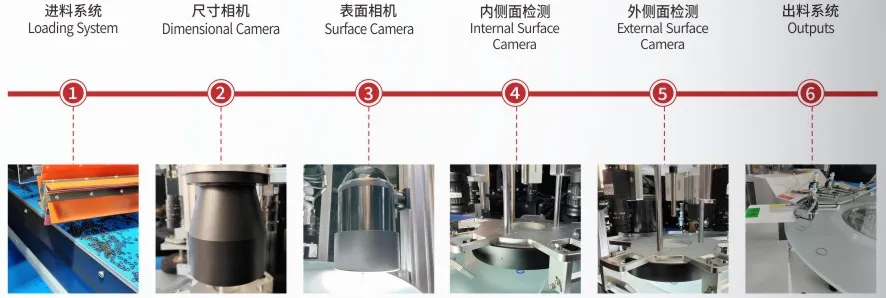

Inspection flow from infeed to discharge — Series inspection flow. This machine's sheet does not say that every station in the drawing is included.

Close view of the vision counting camera and light — Camera and light used on the vision counting equipment. The piece rate is not the camera frame rate.

Frequently Asked Questions

Where do these figures come from?

Each figure is copied from the equipment sheet for this configuration. A blank cell stays blank, and a piece rate is not rewritten as bags per minute.

What should I send for a quotation?

Send the parts, the target count or weight, a bag or carton sample, and the delivery country and city. LINEVO confirms fit and output on those samples.

LINEVO ENGINEERING & SAMPLE TESTING

Check the fastener, the pack and the finished result.

LINEVO can arrange project sample tests and video demonstrations with representative parts and packaging material. Agree the configuration, measurements and test record before sending samples.

Prepare production samples

Use fasteners from a normal production batch and the bag, pouch or carton you intend to ship. Include the count or weight, the pack drawing, the target output and any sizes that tangle or jam. Confirm quantities and shipping instructions with our team first.

Define measurable checks

Agree the count or net-weight target, how many packs to check, the seal checks and the timed count of acceptable packs. Include feeder jams, pouch opening and carton counts where they affect the selected machine.

Carry the criteria into acceptance

Define the factory acceptance test (FAT) scope in the order: configuration, materials, run conditions, pass criteria and records to deliver. Agree whether you need a written record, run video or returned packs for your quality team.

Seal quality: agree the evaluation method with your packaging team. ASTM F88/F88M covers seal separation force and failure mode for flexible barrier materials. Set pack-specific limits separately from a visual check for parts trapped in the seal.

Count and weight: recount or reweigh finished packs at the agreed discharge. A counter pulse or a scale setpoint is not the same record as a saleable bag. For retail packs, NIST Handbook 133 is a reference for checking the net contents of packaged goods.
