Mobile Cart Counting Machine

Name: Mobile Cart Counting Machine
Brand: LINEVO

Wheeled vision counter for a 2–50 mm detection size. The sheet records 8,000–10,000 pcs/min and does not list a bag speed.

Send your fasteners and pack samples to confirm the configuration, output and quotation.

Get a configuration & quote Request an email quote Compare the machine range

Updated October 23, 2026

Equipment photograph supplied for this configuration. Fit, inclusion and output are confirmed on your parts.

Open the main image to see it at full size.

Detection size

2–50 mmThe sheet does not say whether this is length, head diameter or another dimension.

Counting rate

8,000–10,000 pcs/minThis is pieces per minute. It is not a finished-bag rate.

Counting error

0.03%, positive errorThe sheet records 0.03% and says the error is positive: the count may run high, not low. It does not state the sample size, batch setting or acceptance method.

Power supply

AC 220 V ±10%, 50/60 HzRecorded as AC 220 V ±10%, 50/60 Hz. Rated watts and compressed air are not on this sheet.

Machine configuration

Technical specifications

Check your pack against this configuration

Item	Specification	Application and conditions
Detection size	2–50 mm	The sheet does not say whether this is length, head diameter or another dimension.
Counting rate	8,000–10,000 pcs/min	This is pieces per minute. It is not a finished-bag rate.
Counting error	0.03%, positive error	The sheet records 0.03% and says the error is positive: the count may run high, not low. It does not state the sample size, batch setting or acceptance method.
Power supply	AC 220 V ±10%, 50/60 Hz	Recorded as AC 220 V ±10%, 50/60 Hz. Rated watts and compressed air are not on this sheet.

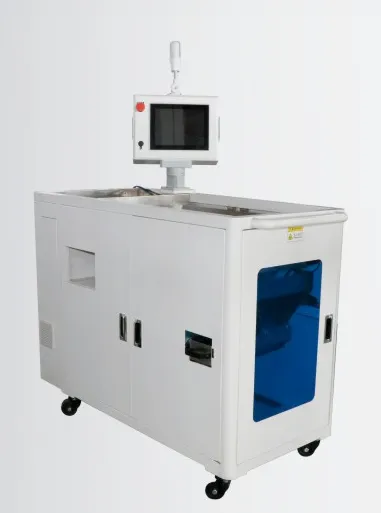

Body	Wheeled cart	The sheet shows a cart with casters and a separate screen. It does not list a packing speed.

This is a wheeled counting cart for parts in a recorded detection size of 2–50 mm. The piece rate is 8,000–10,000 pcs/min. The sheet does not list bag material, bag size or a packing speed for this row.

How to read the recorded count

The sheet records 0.03% and says the error is positive: the count may run high, not low. It does not state the sample size, batch setting or acceptance method.

This is pieces per minute. It is not a finished-bag rate. A finished-bag rate depends on the pieces in each bag, the film and how the parts separate. Compare the LINEVO fastener packing range.

What this sheet does not state

The sheet does not list machine weight, rated watts, compressed air, a warranty or a price. Photos show the equipment. They are not a supply list. Send the parts and the pack.

The cart form is for moving the counter. Floor space, weight and whether the screen is included are not itemized. The low-drop counter is a different sheet row with a 2–35 mm detection size.

Look closer

Equipment and packaging details

Close view of the vision counting camera and light — Camera and light used on the vision counting equipment. The piece rate is not the camera frame rate.

Feeding section of a vision counting machine — Feeding section shown with the counting equipment. Confirm which parts are included before you order.

Frequently Asked Questions

Where do these figures come from?

Each figure is copied from the equipment sheet for this configuration. A blank cell stays blank, and a piece rate is not rewritten as bags per minute.

What should I send for a quotation?

Send the parts, the target count or weight, a bag or carton sample, and the delivery country and city. LINEVO confirms fit and output on those samples.

LINEVO ENGINEERING & SAMPLE TESTING

Check the fastener, the pack and the finished result.

LINEVO can arrange project sample tests and video demonstrations with representative parts and packaging material. Agree the configuration, measurements and test record before sending samples.

Prepare production samples

Use fasteners from a normal production batch and the bag, pouch or carton you intend to ship. Include the count or weight, the pack drawing, the target output and any sizes that tangle or jam. Confirm quantities and shipping instructions with our team first.

Define measurable checks

Agree the count or net-weight target, how many packs to check, the seal checks and the timed count of acceptable packs. Include feeder jams, pouch opening and carton counts where they affect the selected machine.

Carry the criteria into acceptance

Define the factory acceptance test (FAT) scope in the order: configuration, materials, run conditions, pass criteria and records to deliver. Agree whether you need a written record, run video or returned packs for your quality team.

Seal quality: agree the evaluation method with your packaging team. ASTM F88/F88M covers seal separation force and failure mode for flexible barrier materials. Set pack-specific limits separately from a visual check for parts trapped in the seal.

Count and weight: recount or reweigh finished packs at the agreed discharge. A counter pulse or a scale setpoint is not the same record as a saleable bag. For retail packs, NIST Handbook 133 is a reference for checking the net contents of packaged goods.

Discuss your fastener samples and acceptance requirements with LINEVO

Standards & engineering documentation

Technical standards & reference documentation

LINEVO packaging machinery — LINEVO
NIST Handbook 133, Checking the Net Contents of Packaged Goods — NIST

Configuration & quotation

Tell us what you need to pack.

Use the same production brief to compare equipment and quotations. Start with these details, then send your requirements through our homepage.

Request your fastener packing quote Email your RFQ

Fasteners & quantityPart sample, target count or net weight, and each size you need to run.
Finished packBag, pouch, header bag or carton sample, with dimensions and closure.
Required outputAccepted packs per minute, operating hours and planned changeovers.
Site & supply scopePower, compressed air, room drawing, downstream equipment and delivery location.
